Oled-1.3 Sh1106-не отображает информацию.

Seling
Offline
Зарегистрирован: 29.07.2018

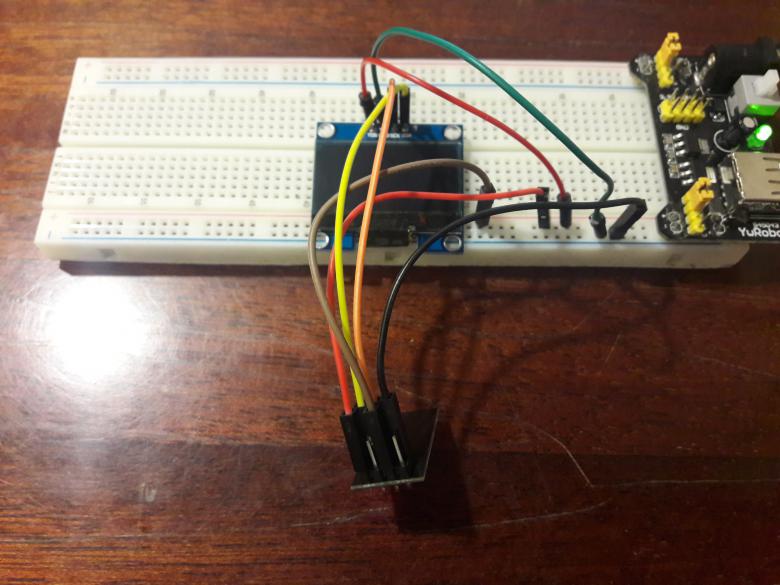

Здравствуйте, помогите пожалуйста разобраться. Собрал на макетной плате "метеостанцию" на ESP-01 и Oled-1.3 Sh1106 загрузил скетч , все подключил а экран ничего не отображает.Esp-01 подключается к точке доступа телефона.Oled рабочий проверял на другом скетче.

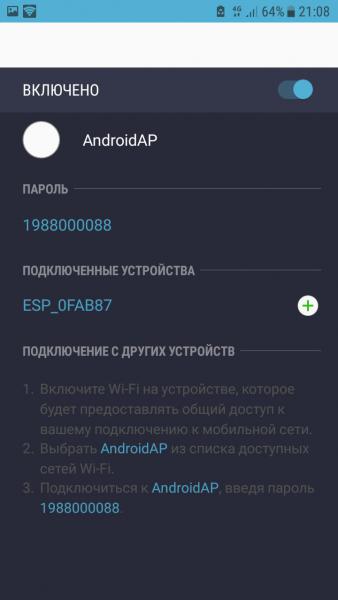

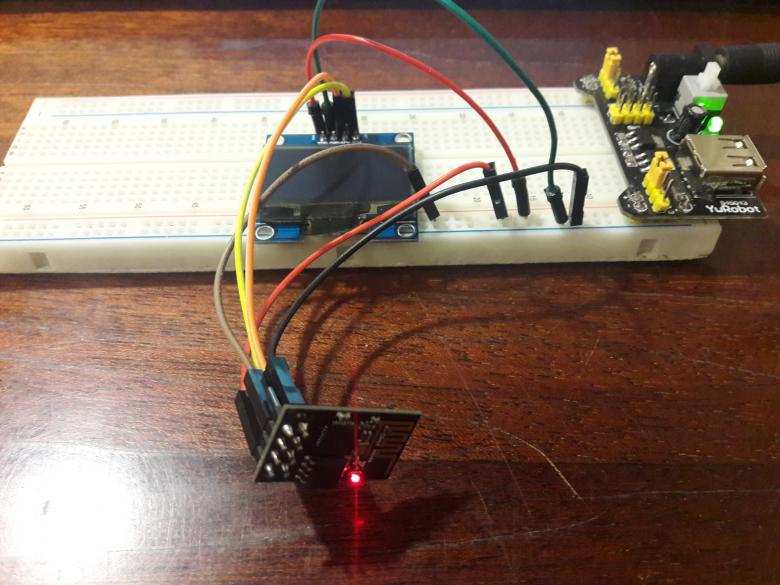

Подключил вроде правильно -

Esp-VCC-3.3 ,

GPIO0 -SDA ,

GPIO2 -SCL ,

CH_PD - Vcc.



/**The MIT License (MIT)

Copyright (c) 2015 by Daniel Eichhorn

Changed/updated by:

Main changes are

1) Driver for OLED changed to SH1106

2) Some more data fields added to the Weather

3) Commented out "Thingspeak" function

4) Added a shutown timer (and a reset/wake button)

5) Added a shaker vibration switch to toggle weather location

Copyright (c) 2017 by Simon Jowett

Permission is hereby granted, free of charge, to any person obtaining a copy

of this software and associated documentation files (the "Software"), to deal

in the Software without restriction, including without limitation the rights

to use, copy, modify, merge, publish, distribute, sublicense, and/or sell

copies of the Software, and to permit persons to whom the Software is

furnished to do so, subject to the following conditions:

The above copyright notice and this permission notice shall be included in all

copies or substantial portions of the Software.

THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR

IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY,

FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE

AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER

LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM,

OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE

SOFTWARE.

See more at Squix – TechBlog

*/

#include <Ticker.h>

#include <JsonListener.h>

#include "SH1106.h"

#include "SH1106Ui.h"

#include "Wire.h"

#include <ESP8266WiFi.h>

#include "WundergroundClient.h"

#include "WeatherStationFonts.h"

#include "WeatherStationImages.h"

#include "TimeClient.h"

//#include "ThingspeakClient.h"

#include "DHT.h"

/***************************

* Begin Settings

**************************/

// WIFI

const char* WIFI_SSID = "AndroidAP";

const char* WIFI_PWD = "1988000088";

// Setup

const int UPDATE_INTERVAL_SECS = 10 * 60; // Update every 10 minutes

// Display Settings

const int I2C_DISPLAY_ADDRESS = 0x3d;

const int SDA_PIN = 12;

const int SDC_PIN = 13;

// TimeClient settings

const float UTC_OFFSET = 0;

float utcoh = 0;

// Wunderground Settings

const boolean IS_METRIC = true;

const String WUNDERGRROUND_API_KEY = "86d9b7fd1bd1d096e1a01cb429117558";

String WUNDERGROUND_COUNTRY = "UK";

String WUNDERGROUND_CITY = "Leeds_Bradford";

// NB!!! - if the city has a 'space' in it ie Cape Town, use an underscore _

const String city1 = "Leeds_Bradford";

const String country1 = "UK";

const String city2 = "Sydney";

const String country2 = "AU";

//Thingspeak Settings

//const String THINGSPEAK_CHANNEL_ID = "67284";

//const String THINGSPEAK_API_READ_KEY = "L2VIW20QVNZJBLAK";

// Initialize the oled display for address 0x3c or 0x3d

// sda-pin and sdc-pin

SH1106 display(I2C_DISPLAY_ADDRESS, SDA_PIN, SDC_PIN);

SH1106Ui ui ( &display );

// DHT Settings

#define DHTPIN 14 // what digital pin we're connected to.

// Uncomment whatever type you're using!

//#define DHTTYPE DHT11 // DHT 11

#define DHTTYPE DHT22 // DHT 22 (AM2302), AM2321

//#define DHTTYPE DHT21 // DHT 21 (AM2301)

#define shakerPin 5 // what digital pin the shaker switch is connect to

volatile int state = LOW; // Volatile to toggls low to high and back when vibration sensor is shaken

int currState = state; // variable to compare to see if the state has changed

volatile long lastVibration = millis(); // required to debounce the shaker.

unsigned long timerSleep = 0; // timer for esp8266 shutdown

/***************************

* End Settings

**************************/

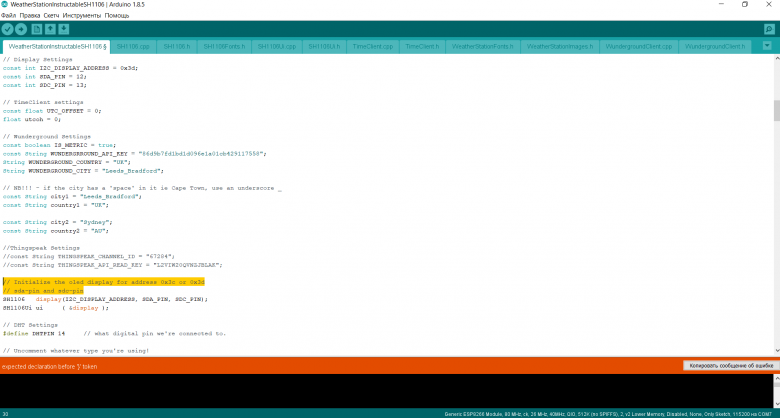

Seling
Offline
Зарегистрирован: 29.07.2018

Seling
Offline
Зарегистрирован: 29.07.2018

Seling
Offline
Зарегистрирован: 29.07.2018

andriano
andriano аватар
Offline
Зарегистрирован: 20.06.2015

А в какой строке, по-вашему, он должен что-то отображать?

nikolaki
nikolaki аватар
Offline
Зарегистрирован: 14.02.2013

В Етой? - "Copyright (c) 2017 by Simon Jowett"



Seling
Offline
Зарегистрирован: 29.07.2018
// Display Settings
const int I2C_DISPLAY_ADDRESS = 0x3d;
const int SDA_PIN = 12;
const int SDC_PIN = 13;

также менял 0x3d на 0x3с не помогло.
b707
Offline
Зарегистрирован: 26.05.2017

Seling, у вас на дисплей ничего и не должно выводится.  В вашем коде нет ни одной строчки, где хоть что-то выводилось бы на дисплей.

Вообще, такое впечатление, что вы запостили не весь код. Вы что, ничего  не понимаете в программировании?

Seling
Offline
Зарегистрирован: 29.07.2018

я извиняюсь, что ввожу вас в заблуждение: код просто не весь влез в сообщение и помимо есть ещё 11 вкладок. Проект взял отсюда https://www.instructables.com/id/Minitaure-Weather-Station-ESP8266/  Немного, только учусь.



Seling
Offline
Зарегистрирован: 29.07.2018

b707
Offline
Зарегистрирован: 26.05.2017

Seling, вставляйте скетч целиком, но только делайте это правильно, в виде кода - красная иконка над окошком ввода сообщения. Тогда код влезет.

И не надо постить "слепые" скриншоты - их никто разглядывать не будет.
